EDUP 300Mbps Wireless Ceiling AP with AR9341 + SiGe2576L 27dBm High Power 300Mbps WiFi Access Point
Modle: EP-AP2621
Product Description
Description EP-AP2619 is a 2.4GHz wireless Ceiling AP. It is perfect for Hotel, Cafe, Shopping mall and big house. With Qualcomm AR9341+SiGe2576L dual chipset, it is so powerful that can cover around 8 rooms. It is muti-function: Router/ AP/ Client/ Gateway/ Repeater. It is easy to set up the network coverage.
Specification
Frequency: 2.3~2.7GHz Compliant with IEEE802.11b/g/n Built-in high gain omn antenna High Speed Up to 300Mbps,Long distance POE power supply supported AP/Router/Repeater/Bridge mode surppoted Celing Mounting design fit for different applications Support 35~50 Clients
Specifications
Chipset
Atheros AR9341 600MHz
DRAM
DDR 64MByte
FLASH
8MByte
Ports
10/100Mbps LAN*2
Data Speed
11b: 11M , 5.5M , 2M , 1Mbps
11g: 54M , 48M , 36M , 24M , 18M , 12M , 9M , 6Mbps
11N:6.5M , 13M , 13.5M , 19.5M , 26M , 27M , 39M , 40.5M ,
52M , 54M , 58.5M , 65M , 81M , 108M , 121.5M , 135M , 150M ,
270M , 300Mbps
Transmit Mode
DSSS
Modulation Mode
OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Standard
IEEE802.11n,IEEE802.11g,IEEE802.11b,IEEE802.3u,IEEE802.3af
Support
CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency
2312 ~ 2732MHz
Power
≤5W
Power Adapter
POE 24V 1A
RF Power
@25 ℃ ±2dB
802.11b
27±2dBm
802.11g
6-24Mbps
802.11g
36-48Mbps
54Mbps
802.11n
HT20
802.11n
HT20
HT40
HT40
sensitivity
IEEE 802.11b
11Mbps≤ -85dBm
IEEE 802.11g
54Mbps ≤ -70dBm
IEEE 802.11n
HT20
MCS 7 ≤ -65dBm
HT40
MCS 7 ≤ -62dBm
Antenna
Frequency
2300 ~ 2800MHz
Polarization
omni-directional
Gain
5DBi*2
Management
WEP Management
Support
SNMP MIB
Support
Telnet
Support
Serial
Support
Security
MAC Address Control
Support
Encryption
WEP Encryption 64/128bits, WPA, WPA2, 802.1x
Environment
Working Temperature
-30 ~ 65 ℃
Storage Temperature
-50 ~ 80 ℃
Humidity ( Non Condensing )
≤95% ( Non Condensing )

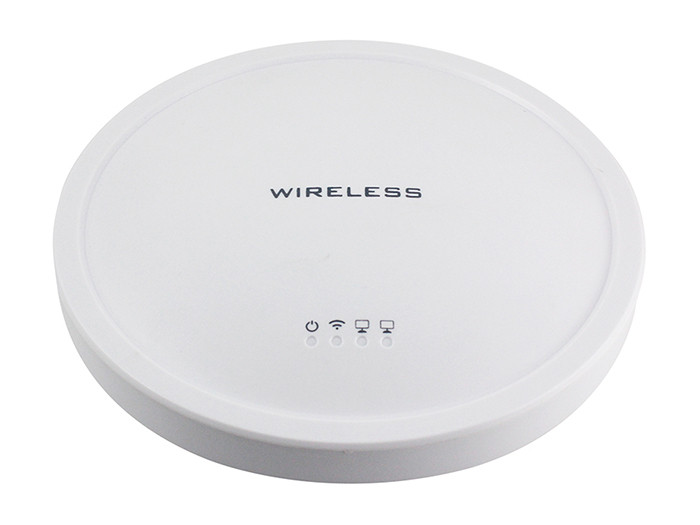

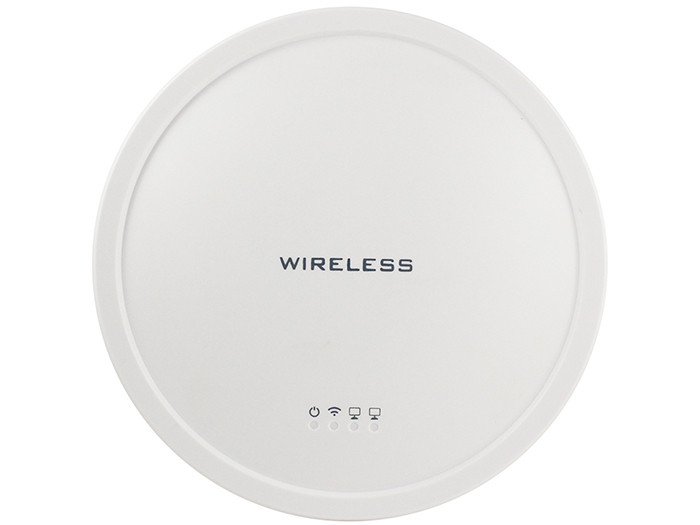

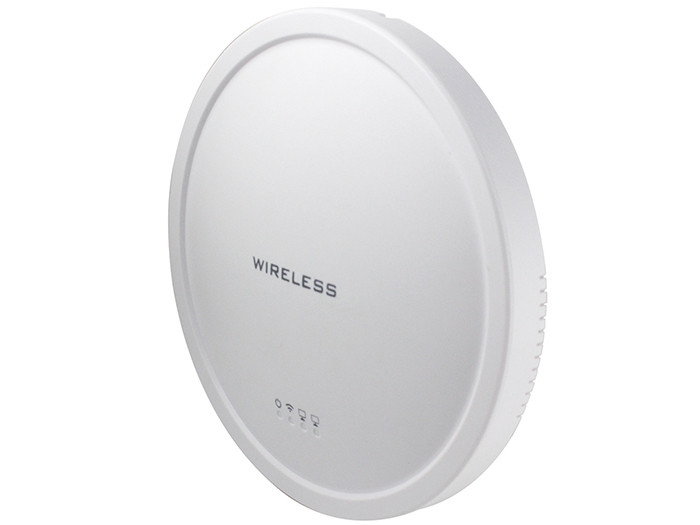

Pictures

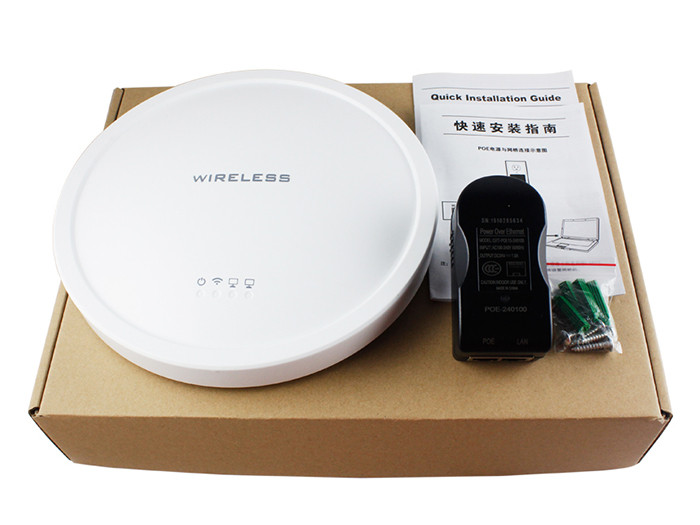

Packaging & Shipping
Package:Blister or color box,K=K Carton
Shipping:By Air,by sea,by Express,LCL,FCL
Payment Condition:30% deposit in advance,70% balance before delivery
Delivery Term:Sample is 1~3days,5days for ready goods,OEM is 30days after deposit
Our Services
Why Choose US?
Brief:
Professional with many years experience from 2004 Brand:EDUP,Cardking,Wisetiger,SkyWing Most competitive price from material supplier base on huge orders to them Experienced an effective inner cost control system through whole process Quality Control
Raw material test,Online production test,PCS test,finished product test Providing relative solution CE,FCC,RoHS,SGS approved Factory Service:
OEM /ODM service and support Free Sample Development for old customers or customers on Fair Free promotion material if needed Clients service one-to-one Effective communication within 24 hours Attend Hongkong Fair / Carton Fair to meet customer face to face New design and style collection updating for customer FAQ
FAQ
1.What is your advantage?
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---All our products with 12months guarantee
2.What is our Payment methods?
We agree T/T, Western Union, PayPal.L/C for old customers.
3.What is our Shipping & Trade terms?
Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.
Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Trade terms: EXW, FOB , CIF etc.
4. What is our Warranty and Certificates?
Our warranty is 12 months.
We have CE, ROHS, FCC certificates
5.What is your MOQ?
1pc
