300Mbps High Power Ceilling Mount Wiireless WiFi Access Point

FOB Reference Price:Get Latest Price
  • 100 - 499 Pieces
    US $31.00
  • 500 - 999 Pieces
    US $30.00
  • 1000 - 2999 Pieces
    US $29.00
  • >=3000 Pieces
    US $28.00
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Wireless, 300Mbps High Power Ceilling Mount Wiireless WiFi Access Point
Application:
Soho
Function:
Firewall, QoS, VPN
LAN Ports:
4
WAN Ports:
1
Certification:
CE, FCC, RoHs
Brand Name:
EDUP
Model Number:
EP-AP2627
Place of Origin:
Guangdong, China (Mainland)
Transmit Rate:
300M
WiFi Standard:
802.11 B/G/N
Frequency:
2.4~2.4835GHz
Chipset:
MT7620A
Channel:
13
Wireless Transmit Power:
27dBm
Memory:
8MB Flash,64MB RAM
RAM:
64M
Flash:
8M
Supply Ability
Supply Ability:
6000000 Piece/Pieces per Month MOQ of OEM is 1000PCS
Packaging & Delivery

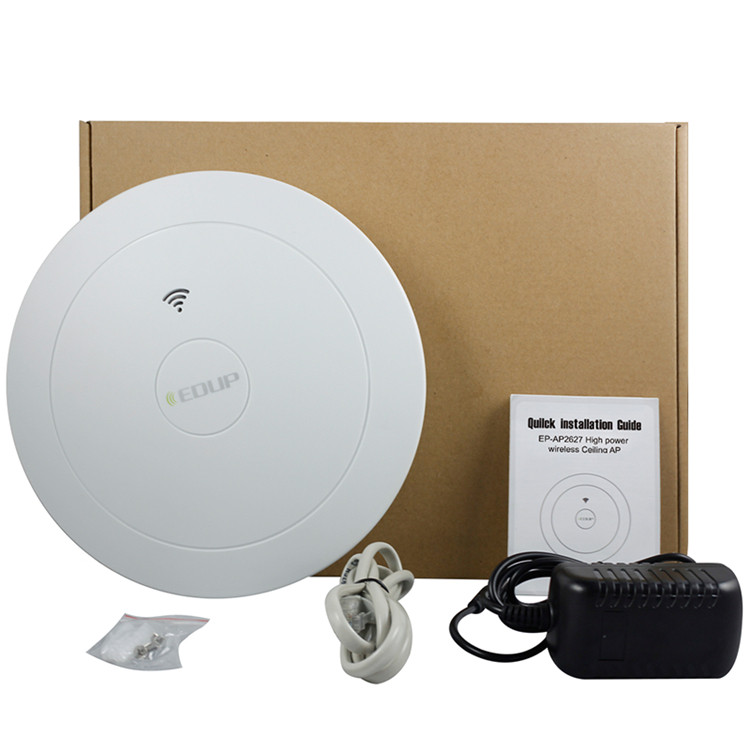

Packaging Details
1* Wireless Router
1* Power Adapter
1* Manual
Q'ty: 50PCS/CTN
Carton Size: 56.5*45.5*50M
G.W.: 0.6KGS/PC
G.W.: 30KGS/CTN
Port
Shenzhen/Hongkong
Lead Time :
Shipped in 1 days after payment

300Mbps High Power Ceilling Mount Wiireless WiFi Access Point

  • wifi access point

  • 300mbps wireless ceiling ap

  • ceiling-mount ap wireless router for hotels





Product Description

Description

EP-AP2627 wireless ceiling AP is a wireless access point device based on IEEE802.11n standards, Using MIMO technology to provide wireless users a stable transmission rate up to 300Mbps, supports IEEE802.11b/g/n protocol, self-adaptive transmission rate increases the AP and other network devices ability to interoperate.It supports standard IEEE802.3af POE Power. Just a cable you can achieve data transmission and power. Ceiling AP design and 48V POE power supply technology are more user-friendly for expansion of wireless networks and realizeWi-Fi coverage for home, hotels, restaurant and other public indoor places.



Feature

  • High Performance Wireless PA and LNA
  • Smart QoS
  • Access Point support Fat/fit mode and can switch over
  • Support Fat/Fit Mode,Easy to switch from AP to Wifi Router and from wifi router to AP
  • Support IEEE802.3af POE power supply or POE 802.3af DC 12 power supply
  • Standard:802.11b/g/n,
  • 2*2 MIMO Antenna
  • MTK7620A chipset
  • Low power consumption and support 30~50 simultaneous connections
  • High performance brings users more fluid internet surf experience;
  • Support 4 SSIDs



Hardware Specification

Main Chipset

MT7620A

Memory

8MB Flash,64MB RAM(DDR2)

PCB

With CE,FCC silk-pinting

Antenna

Built-in double 2.4G 3dBi Antenna

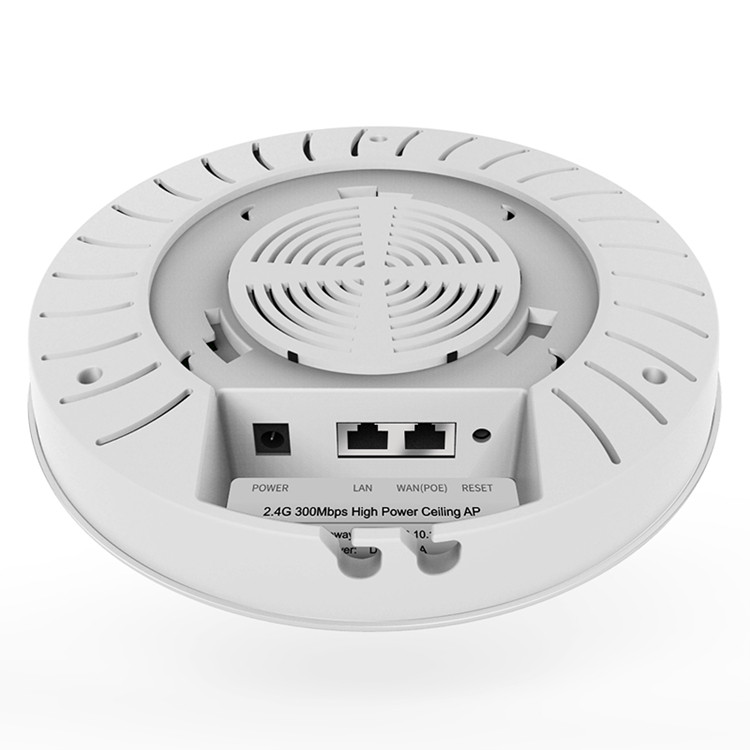

Ports

2x10/100 eight pins RJ45Ports,Support POE Power

Power

Support POE Power (IEEE 802.3afstandard )

Support DCPower (12V/1A)

Indicator

1blue 2.4GHz wireless indicator

Button

1 restore factory button

2.4Ghz Wireless (Green Indicator)

Indicator On /off:Power on/off

Indicator on: Wireless Open

Flash:Wireless Data Transmission( On:100Ms,off:100Ms)

RF Specfication

Frequency

2.4GHz:2.4~2.4835GHz

Transmission Rate

2.4GHz

11b:1/2/5.5/11Mbps

11g:6/9/12/18/24/36/48/54Mbps

11n:Max up to 300Mbps

Working Channel

2.4GHz:13(1~13)

spread spectrum

DSSS

Data Modulation

11b:CCK,QPSK,BPSK

11g:OFDM

11n:QPSK,BPSK,16-QAM,64-QAM

media access protocol

CSMA/CA with ACK

Encription

WPA-PSK/WPA2-PSKWPA/WPA2,WEP

sensity

802.11n

802.11g

802.11b

-90dBm @ MCS0

-94dBm@6Mbps

-96dBm @1Mbps

-68dBm @MCS7

-72dBm@ 54Mbps

-89dBm @11Mbps

Transmission Power

802.11n (2.4GHz)

802.11g

802.11b

21dBm@MCS0~2/MCS8~10

23dBm@6~24Mbps

25dBm@1~11Mbps

21dBm@MCS3/MCS11

23dBm @36Mbps



21dBm @MCS4/MCS12

23dBm @ 48Mbps



21dBm@MCS5/MCS13

23dBm @ 54Mbps



21dBm @ MCS6/MCS14





21dBm@@MCS7/MCS15









Software Specification



Networking wizard

Automatic network configuration

Wireless Setup

Show SSID

Show SSID



Hide SSID

Hide SSID



Users

SSID Can support 3 groups



Wireless Mode

802.11b/g/n



Channel

1~13



Channel Bandwidth

20/40MHz,Bandwidth Optional



spreadspectrum

Automatically



WDS

WDS Network,Surppot 3 Group



Advanced Setup

IGMP, Multicast, preamble, ampduRTS ,RTS,DTIM, Signal Interval, TX Burst ,Packet Aggergarion, WMM APSD WMM DLS





Wifi Certificate

802.1x   Radius WPA-Enterprise/WPA2-Enterprise WPA2-Personal,WPA-Auto-Personal,WPA2-Personal,WPA-Auto-Enterprise,open system



AC Cloud Controller

LAN AC

Configuration Management through AC Controller

WLAN AC

Configuration Management through AC Cloud Controller

Network Settings

LAN Port setup

LAN: get IP address automaticallyor manual settingsDNS: get IP address automatically or manual settings

System Settings

Operating Mode

AP/Router

System Setting

Router Name, password, time server,access authorization, access mode

Firmware Upgrade

Upgrade Firmware

Restore

Restore default setting, Import or export settings

Plan Task

Perform self-timing restart

System logs

Logs Record

System operation logs

Network diagnosis

Network diagnosis

PingDiagnosis,Netstat,network Status button diagnosis

Wake-on-LAN
