awus039nh 1000mw Alfa Wifi USB Adapter 802.11g High Power Wireless USB Adapter

FOB Reference Price:Get Latest Price
US $5.59-6.31 / Pieces | 1 Piece/Pieces small order is also available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Application:
Desktop and Laptop
Type:
Wireless
Kind:
External
Transmission Rate:
54Mbps
Interface Type:
USB
Certification:
CE,FCC,RoHS
Brand Name:
Alfa
Model Number:
Alfa
Place of Origin:
Guangdong, China (Mainland)
Standard:
1000mw alfa wifi usb adapter
Interface:
USB 1.1/ 2.0
Frequency Band:
2.400GHz ~ 2.484GHz
Access Protocol:
CSMA/CA
RF Output Power(Typical):
802.11g: 21± 1 dBm ; 802.11b: 27± 1 dBm
Antenna:
One detachable 5dbi antenna(SMA connector)
Humidity:
10% ~ 90% (Non-condensing)
Sensitivity:
-75dBm @ 54 Mbps/-87dBm @ 11 Mbps
Security:
WEP,WPA,WPA2
Dimension (mm):
75 (L) x 59(W) x 12.3(H) mm(not including antenna)
Supply Ability
Supply Ability:
1500000 Piece/Pieces per Month OEM
Packaging & Delivery
Packaging Details
Q'ty: 100PCS/CTN
Carton Size: 69X43X44CM
G.W.: 0.21KGS/PC
G.W.: 22KGS/CTN
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment

awus039nh 1000mw Alfa Wifi USB Adapter 802.11g High Power Wireless USB Adapter

Description

This is an ALFA 802.11g wireless USB adapter. The adapter is come with an RP-SMA antenna connector so that you can add an external antenna to boost your wireless range and signal. And to make things better we are including a 5dBi gain rubber duck antenna in the sale (comes with the adapter in the retail box).

The high power 1000mW can increase the receive signal range and the 5dBi antenna can increase the signal strength. So if you are looking for a device to connect to an indoor / outdoor wireless signal. This is your perfect solution.

Some of laptops there would be no longer include a PCMCIA card slot. This High Power Wireless USB WiFi Adapter would be another way for you to get a wireless connection option with an external antenna connector. This Adapter will work on any PC with a USB port (laptop or desktop) and is especially ideal for folks whose laptops do not have a PCMCIA slot who need a long range wireless solution. And the adapter has a stunning 1000mW output power that is much higher than normal PCMCIA cards.

Festures

  • 54M High Speed Transfer Rate for 802.11g
  • Detachable antenna with RP-SMA connector - upgradeable to a higher power antenna for a wider wireless coverage.
  • High Output Power up to 500mW  for extend the coverage range up to 5x than standard USB adapters
  • Operating distance of up to 500 meters in free space
  • Plug -and-Play compatible with all computers.
  • Software AP Function, Support PSP, X-Link, QoS, WMM
  • High security 64/128/256bit WEP Encryption, TKIP, WPA, 802.11

Specification

Standard

 IEEE 802.11g/b



 Interface

 USB 1.1/ 2.0



 Frequency Band

 2.400GHz ~ 2.484GHz



 Radio type

 IEEE 802.11g: OFDM(64-QAM, 16-QAM, QPSK, BPSK)



 IEEE 802.11b: DSSS(CCK/DQPSK/DBPSK)



 Data Rate

 802.11g: 54, 48, 36, 24, 18, 12, 9 & 6Mbps



 802.11b: 11, 5.5, 2 and 1 Mbps with auto-rate

fall back



 Access Protocol

 CSMA/CA



 Number of operation channel

 2.412~2.462GHz (Canada, FCC) / 11 Channels



 2.412~2.484GHz (Japan, TELEC) / 14 Channels



 2.412~2.472GHz (Euro, ETSI) / 13 Channels



 Security

 64/128bit WEP



 WPA(TKIP with IEEE 802.1x)



 WPA2(AES with IEEE 802.1x)



 RF Output Power(Typical)

500mW:

802.11g: 21± 1 dBm ; 802.11b: 27± 1 dBm







Sensitivity

 -75dBm @ 54 Mbps



 -87dBm @ 11 Mbps



 Antenna

 One detachable 5dbi antenna(SMA connector)



 Dimension (mm)

75 (L) x 59(W) x 12.3(H) mm(not including antenna)



 Weight

39g



 Operation Temperature

 0°C ~ 60°C ambient temperature



 Storage Temperature

 -20% ~ 70% ambient temperature



 Humidity

 10% ~ 90% (Non-condensing)



 Driver support

 Windows® 98SE, ME, 2000, XP 32/64, Vista 32/64



Package details

1* Wireless USB adapter
1* CD driver
1* USB Cable

1*6dBi antenna

Q'ty: 100PCS/CTN
Carton Size: 69X43X44CM
G.W.: 0.21KGS/PC
G.W.: 22KGS/CTN

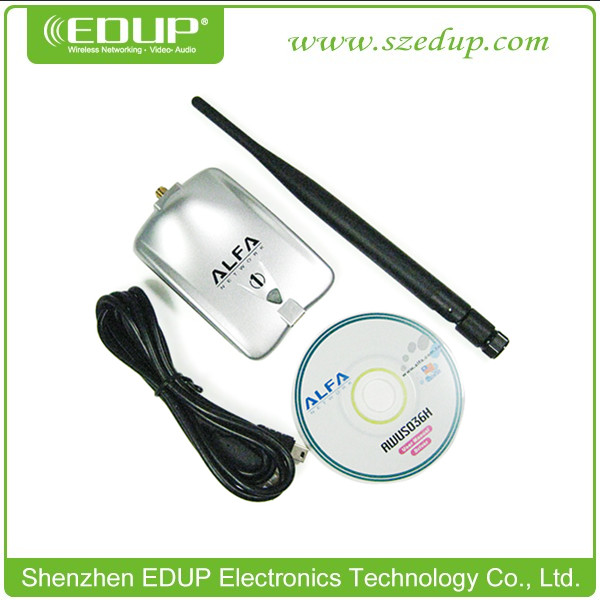

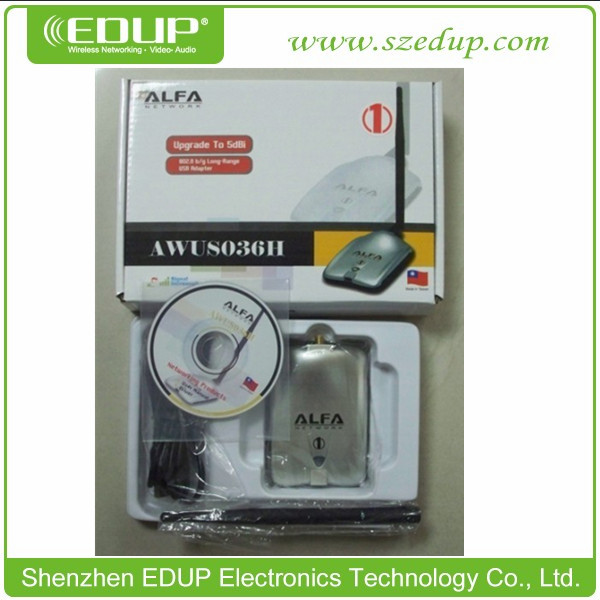

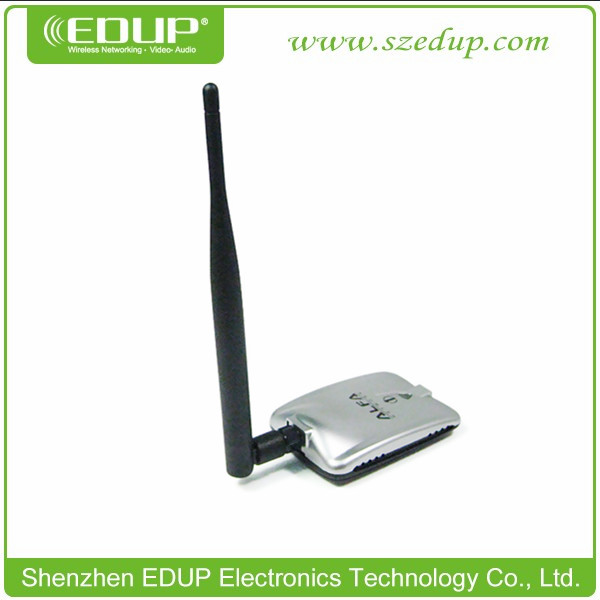

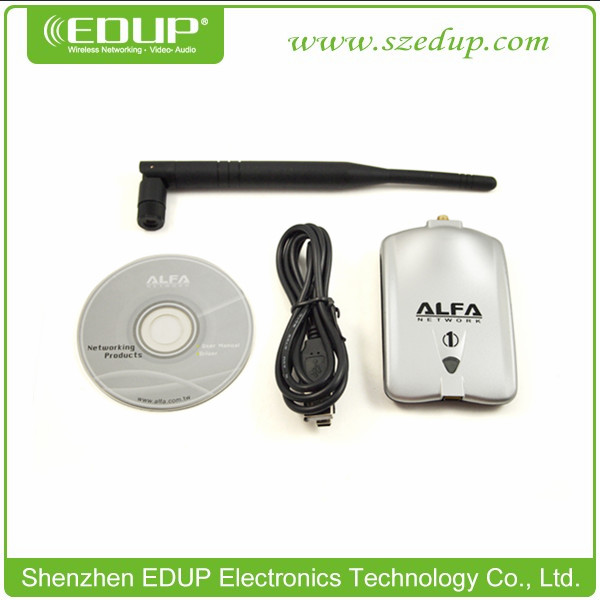

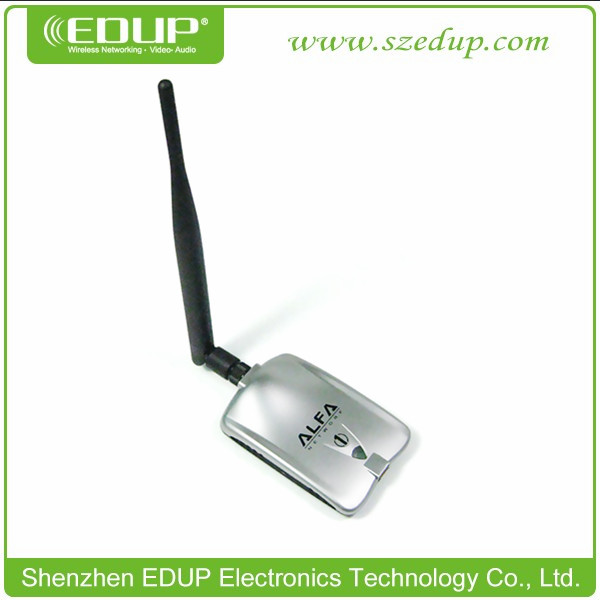

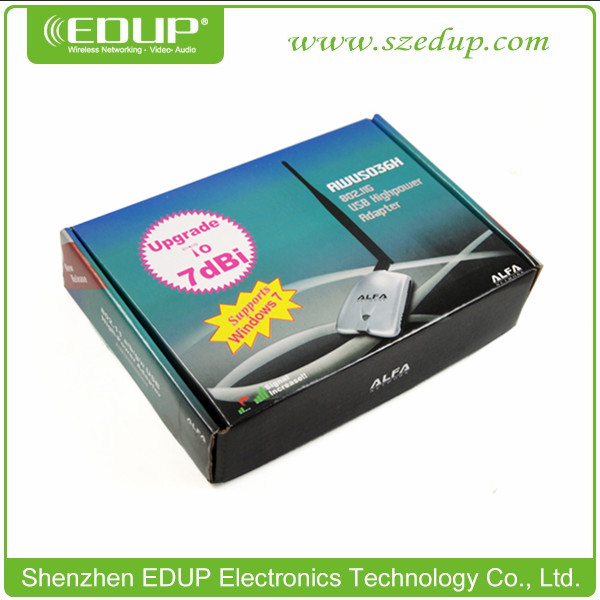

Pictures Show

Alfa-5 Package.jpgAlfa.jpgAlfa-1.jpgAlfa-2.jpgAlfa-3.jpgAlfa-4.jpg



Packaging & Shipping


Package:Blister or color box,K=K Carton

Shipping:By Air,by sea,by Express,LCL,FCL

Payment Condition:30% deposit in advance,70% balance before delivery

Delivery Term:Sample is 1~3days,5days for ready goods,OEM is 30days after deposit

Our Services

Why Choose US?

Brief:

  • Professional with many years experience from 2004
  • Brand:EDUP,Cardking,Wisetiger,SkyWing
  • Most competitive price from material supplier base on huge orders to them
  • Experienced an effective inner cost control system through whole process

Quality Control

  • Raw material test,Online production test,PCS test,finished product test
  • Providing relative solution
  • CE,FCC,RoHS,SGS approved Factory

Service:

  • OEM /ODM service and support
  • Free Sample Development for old customers or customers on Fair
  • Free promotion material if needed
  • Clients service one-to-one
  • Effective communication within 24 hours
  • Attend Hongkong Fair / Carton Fair to meet customer face to face
  • New design and style collection updating for customer
Company Information
QQ20160519084510

Customers and Exhibition

Certificate

FAQ

FAQ

1.What is your advantage?

---Your inquiry will be replied in 24hours

---Well-trained and experienced staffs to answer all your inquires in fluent English

---OEM&ODM, for any of your customized products we can help you to design and put into product

---All our products with 12months guarantee

2.What is our Payment methods?

We agree T/T, Western Union, PayPal.L/C for old customers.

3.What is our Shipping & Trade terms?

Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.

Delivered time: 2-3 business days for sample, 20-25 days for mass order.

Trade terms: EXW, FOB , CIF etc.

4. What is our Warranty and Certificates?

Our warranty is 12 months.

We have CE, ROHS, FCC certificates

5.What is your MOQ?

1pc
