Quick Details
- Products Status: Stock
- Application: desktop, laptop, server
- Type: Wireless
- Kind: External
- Transmission Rate: 300Mbps
- Interface Type: USB
- Certification: CE FCC ROHS
- Brand Name: EDUP
- Model Number: EP-DB1305
- Place of Origin: Guangdong, China (Mainland)
- type: dual band 2.4ghz / 5ghz usb wifi adapter
- chipset: Realtek8192DU
- Frequenc: 2.4GHZ to 5.8GHz
- Standard: EEE802.11a/b/g/n,IEEE802.11e(wmm),IEEE802.11i(wpa,wpa2),WAPI
- application: Windows 2000/xp/visat,Win7,Linux,Mac
- Color: white
- logo: can be customized
- pacakge: color box
Packaging & Delivery
| Packaging Details: | 300mbps dual band 2.4ghz / 5ghz usb wifi adapter
standard: Color gift box We can OEM package as you want such as white paper box, PE bag, blister card package, etc |
|---|---|
| Delivery Detail: | 2-3days for sample order, 20days for mass production |
600mbps dual band 2.4ghz / 5ghz usb wifi adapter with Realtek 8192DU chipset
Model No EP-DB1305
Specifications of 300mbps dual band 2.4ghz / 5ghz usb wifi adapter:
EEE802.11a/b/g/n,IEEE802.11e(wmm),IEEE802.11i(wpa,wpa2),IEEE802.11Htpc,IEEE802.11K,WAPI standard
Support 2T2R and 2.4GHz/5Ghz dual frequency
Wireless transmission rate up to 300Mbps(802.11n),according the Internet condition to adjust wireless rate automatically
Support 20MHz/40MHz bandwidth
Search Internet and change transmission rate automatically
Provide two work mode: Infrastructure and Ad-Hoc
Downward compatability 802.11g/n Internet device
Support WPA,WPA2 encryption and security authentication mechanism, China LAN security standard
Use Roaming technology, promise high effective wireless connect
Support WMM, let your video more fluent
System requirement | Android/Win7/Vista/Linux/Win CE/Windows XP operate system |
Agreement standard | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b |
Port | USB 2.0 |
Power | 600mW |
Antenna
| Integrated |
Size
| 64mmx18mmx4mm |
Wireless transmission rate | 11n:6.5-72.2Mbps(20MHzBandwidth).13-300Mbps(40MHZ Bandwidth).11g:54,48,36,24,18,12,9,6Mbps. 11b:11,5.5,2,1Mbps. 11a:54,48,36,24,18,12,9,6Mbps |
Wireless frequency rate range | .4G:2.414GHz-2.483GHz;5G:low frequency range 5.15GHz-5.25GHz,Middle frequency range 5.25GHz-5.35GHz;High frequency rate 5.725-5.825GHz |
Work channel | 2.4G:1-14,5G:low frequency range:36-64(8 channel),Middle frequency range:100-140(11 channel),high frequency range:149=165 |
Power | 16dBm(Max) |
EVM | -28dB |
Accept | 300Mbps:-65dBm@10% PER;108Mbps:-70dBm@10% PER;54Mbps:-72dBm@10% PER;11Mbps:-87dBm@8% PER; 6Mbps:-90dBm@10% PER;1Mbps:-92dBm@8% PER |
Wireless security | Meets 64/128-bit WEP, WPA, and WPA2 and 802.1x security standards |
Use condition | work temperature: -20°C-50°C Storage temperature:-40°C-70°C Work humidity:10%-90%RH non-condensation Storage humidity:5%-90% non-condensation |

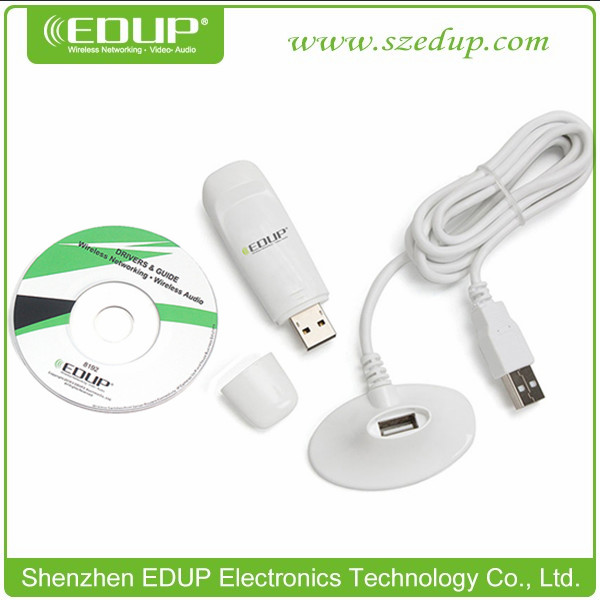

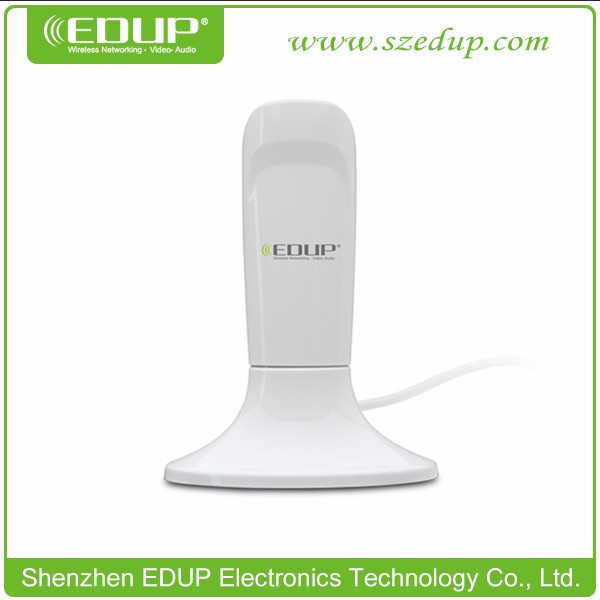

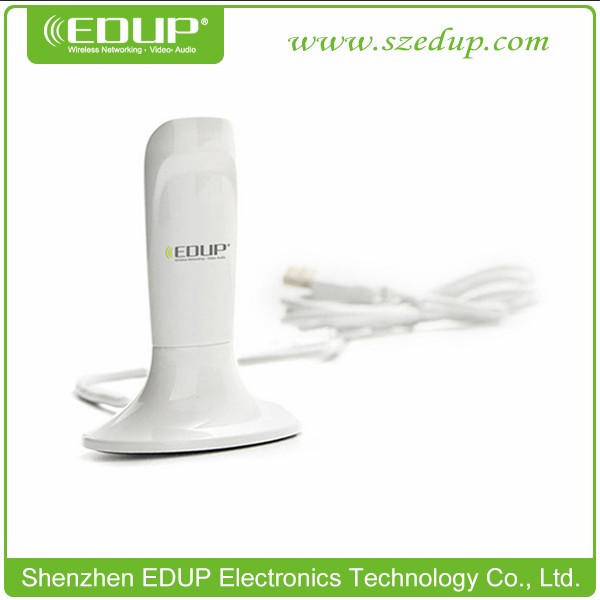

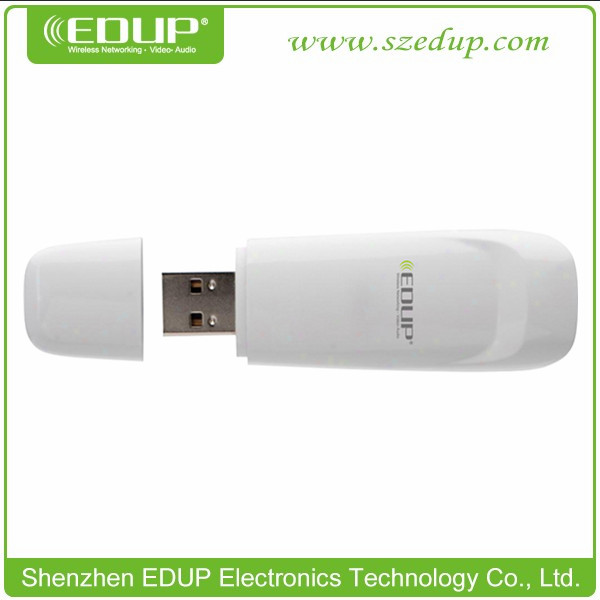

Pictures of 300mbps dual band 2.4ghz / 5ghz usb wifi adapter:
|
Product Packing details:
Our service:
---Your inquiry will be replied in 24hour
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 6,000,000 pcs
---All our products with 12months guarantee
About sample:
Sample is available.
Sample lead time: 2-3 working days, 4-5 days with customized logo
More details, please contact with us.
Payment methods:
T/T, Western Union, PayPal .
30% deposit, balanced before shipment.
Shipping & Trade terms:
By sea, air, or UPS, FEDEX, EMS, DHL, etc.
Payment:T/T, Western Union, PayPal.
Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Our Certificates:
